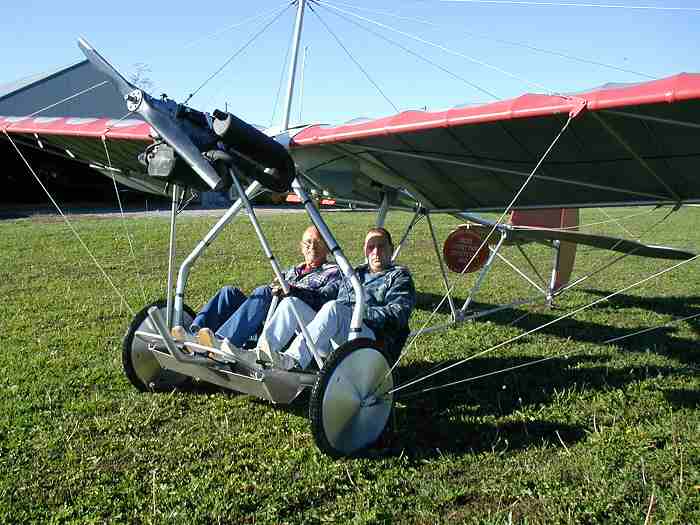

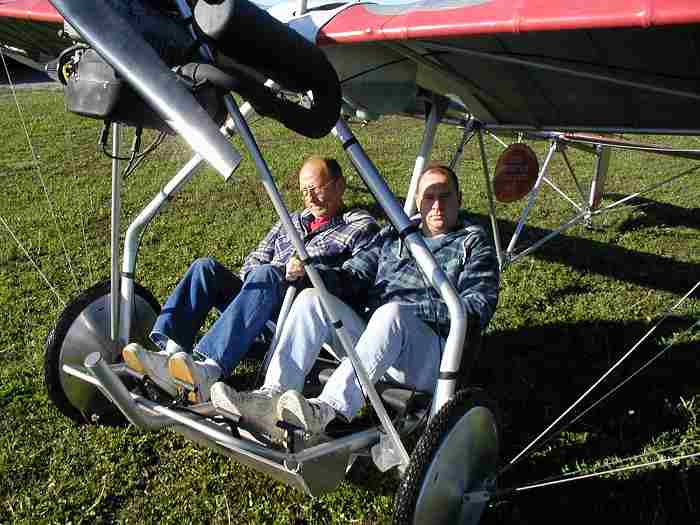

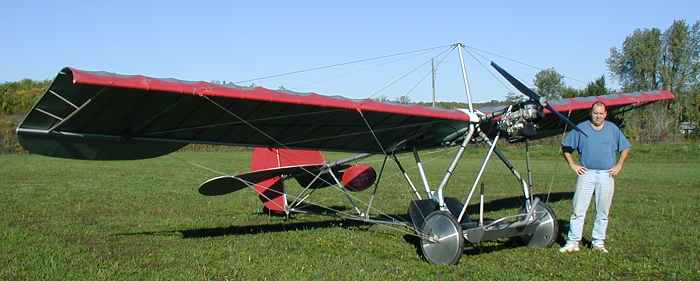

Two Place
GENERAL INFORMATION FEATURES
-
WEIGHT 312 LBS
-
ALUMINUM TUBING & RIVET CONSTRUCTION
-
USEFUL LOAD 320 LBS
-
STALL SPEED 27 MPH
-
CAD DESIGNED & DETAILED
-
CRUISING SPEED 52 MPH
-
QUICK BUILD 200 HOURS
-
TOP SPEED 63 MPH
-
REMOVABLE WINGS
-
RATE OF CLIMB: 550 FPM
-
MODERN 2-STROKE ENGINE
-

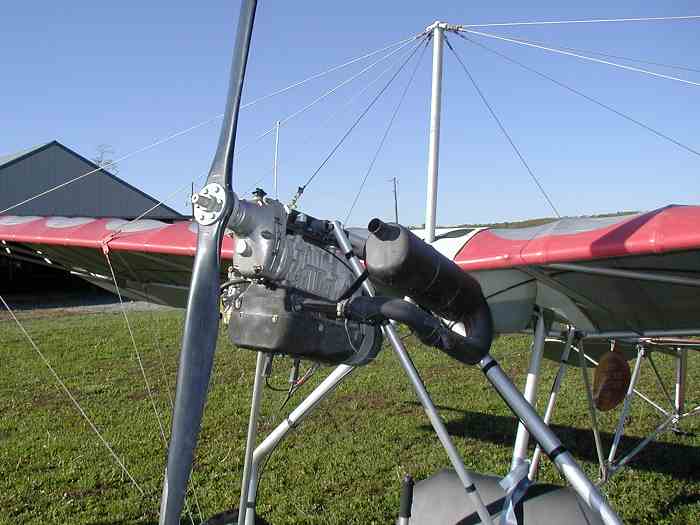

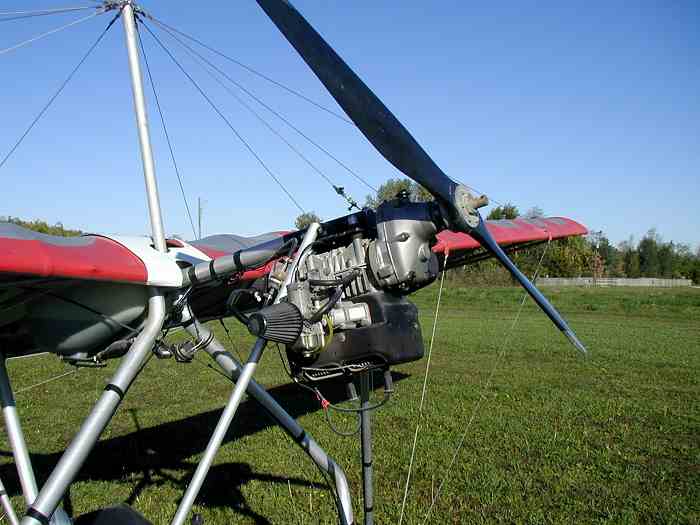

ENGINE: 503 ROTAX 52 HP
-
LIGHT RESPONSIVE CONTROLS
-

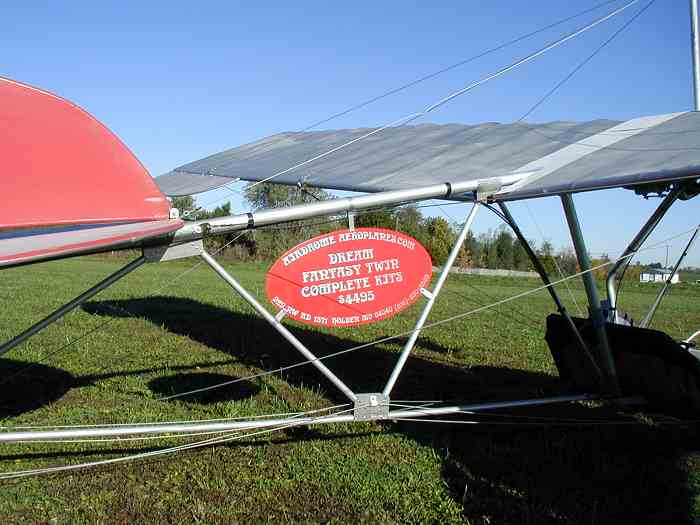

COMPLETE AIRFRAME KITS See Order Form
All aluminum tubing to complete fuselage , wings, landing gear, cabanes, lift struts. All aluminum sheet metal to construct gussets, All machined parts for control systems, lift struts, axles, & wings. All AN hardware to build aircraft, eyebolts, locknuts, thimbles, nico press swedges aircraft cable (rudder cables, drag/anti-drag braces). Ball bearing rod ends for control system. steel pull rivets. Main wheels, tail wheel, plans and builders video. All covering supplies through silver.
PRE -BUILT AIRFRAME KIT See Order Form PRE BUILT AIRFRAME CONSIST OF AIRFRAME READY FOR COVERING AND ENGINE INSTALLATION.
ENGINE OPTIONS: TWO STROKE: ROTAX 447 40 HP THROUGH ROTAX 582 65 HP FOUR STROKE: HALF V/W OR ENGINES UP TO 98 LBS
Robert Baslee 929 NW RD 1571 HOLDEN MO. 64040 (816) 230-8585
|
