THE DREAM CLASSIC

If  Snoopy was your aviator of choice,
you might opt for the Sopwith tail on your Dream Classic.

Complete airframe (wire braced) price: See Order Form

Complete airframe (strut braced) price: See Order Form

The dream classic is airdrome airplanes
answer to the cry for an FAA legal, safe,
three axis control system, back to basics
ultralight aircraft.

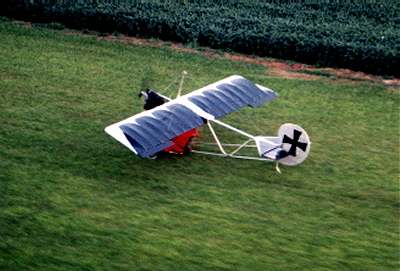

dream2.jpg (18389 bytes) With three axis controls, it handles just like a "real" airplane.

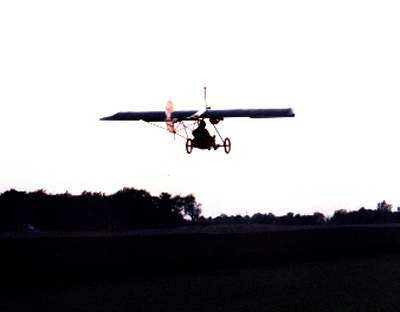

High speed pass. just the thing for those soft summer nights.

For the pilot who's flying on a budget, the dream fits the bill.

Standard wing

Heavy hauler

With rotax 447

Stall speed 26 mph

Cruise speed 57 mph

Top speed 63 mph

Empty wt 241 lbs

Span 30'6"

Cord 48"

Area 122 sq. ft

Useful load 250 lbs

Gross wt 491 lbs.

Wing loading

4.02 lbs per sq. ft

Rate of climb 850 ft per min

Power to wt ratio 12.28 lbs per hp

Take off dist 95 ft

Engine requirements

Weight 68 lbs Min

92 lbs Max

Horse power

Min 28 hp

Max 52 hp

Speed wing

With rotax 447

Stall speed 31 mph

Cruise speed 68 mph

Top speed 76 mph

Empty wt 223 lbs

Span 21' 6"

Cord 48"

Area 86 sq. ft

Useful load 170 lbs

Gross wt 393 lbs

Wing loading

4.57 lbs per sq. ft

Rate of climb 670 ft per min

Power to wt ratio 9.83 lbs per hp

Take off dist 125 ft

Engine requirements

Weight 52 lbs Min

78 lbs Max

Horse power

Min 28 hp

Max 40 hp

The dream classic ultralight is a full three axis aircraft with a side mount stick & is covered with the certified poly fiber process. This kit comes with all machining & required welding pre-done. Construction time is normally around 100/120 man hours .



Click the images below to enlarge.

Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge
